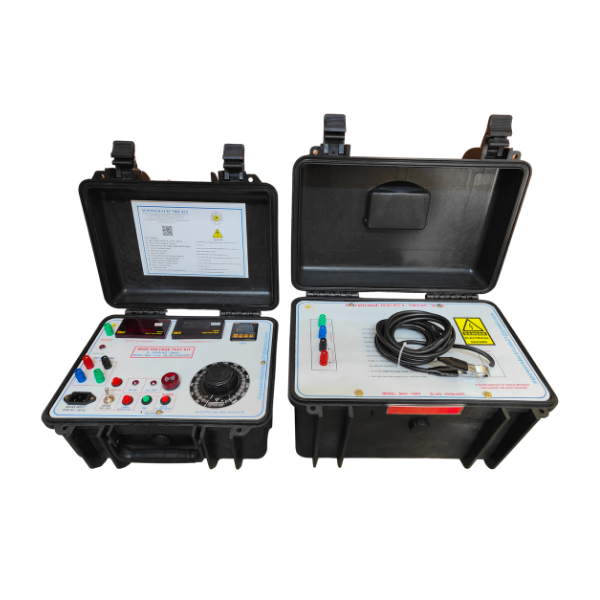

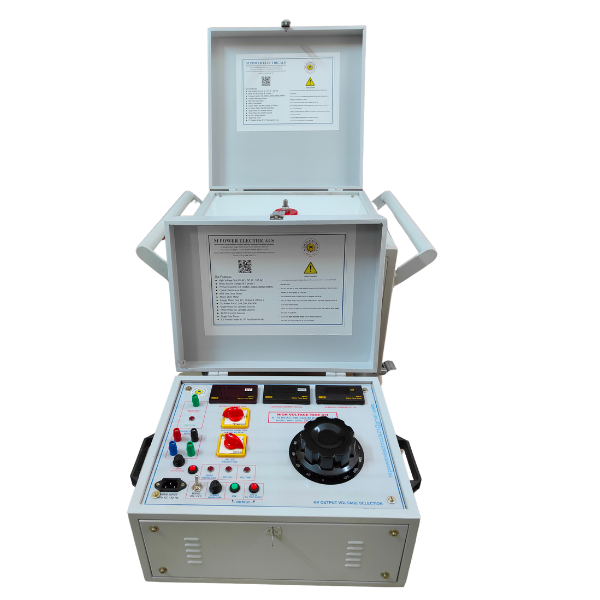

AC High Voltage Test Kit

AC High Voltage Test Kit

AC High Voltage Test Kit

Brief Description:

The AC Hi-Pot Test Kit is a high-voltage testing device designed to evaluate the dielectric strength and insulation integrity of electrical equipment. It provides precise AC high-voltage output, making it ideal for applications such as power equipment testing, cable insulation verification, and compliance testing in industrial and laboratory environments. This kit is widely used for testing transformers, switchgear, circuit breakers, HV cables, motors, capacitors, and relays, ensuring adherence to industry safety standards.


Product Detail

Specifications



Specification Details
Power Supply 230V AC, 50Hz ±10%
Rated Output Voltage 30kV / 60kV / 70kV (Customizable)
Rated Output Current 15mA / 25mA / 50mA / 100mA (Customizable)
Resolution 0.001 to 1 Count
Transformer Accuracy ±1kV (Full Load)
Meter Accuracy 0.5 / 1.0 Class
Environment Temperature -10°C ~ 50°C
Panel Meters kV, mA AC Meter
Housing i) Control Unit - Polypropylene Case / Mild Steel Box ii) Transformer Unit - Mild Steel Box
Weight i) Control Unit - 12kg ii) Transformer Unit 30kV - 20kg iii) Transformer Unit 60kV - 40kg iv) Transformer Unit 70kV - 45kg
Timer (Optional) 0 - 9999 Sec



Standard Accessories

  • Transformer Interconnecting Cables
  • Power Cord
  • Earth Cables

Optional Addons

  • AC Digital Voltmeter:0-100kV
  • Sphere Ball
  • Discharge Rod
  • Resistor
  • HV Capacitor:0-100kV
  • Timer with Buzzer Setup







Note:

 Please note that the specifications and data provided are subject to change due to ongoing research and development.
