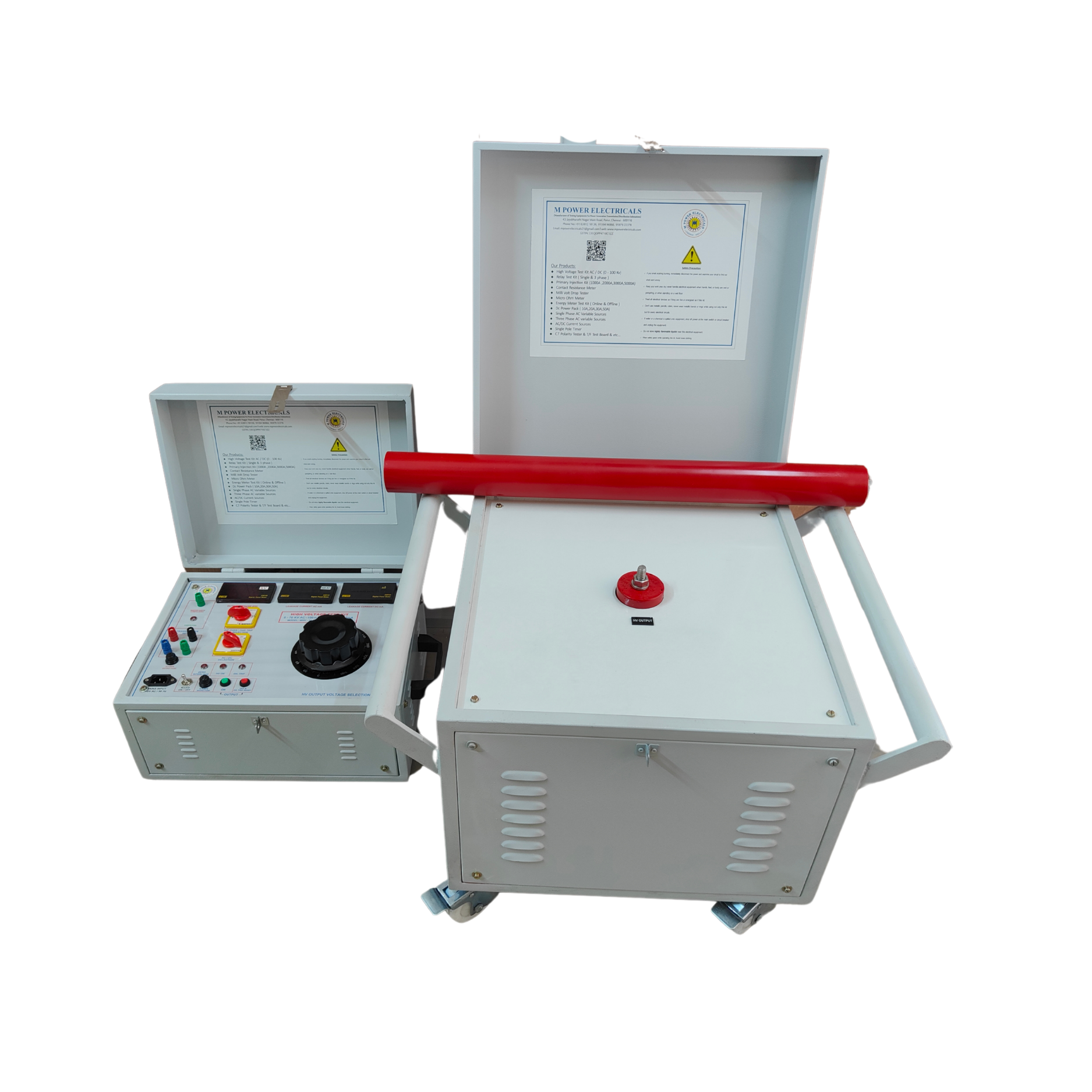

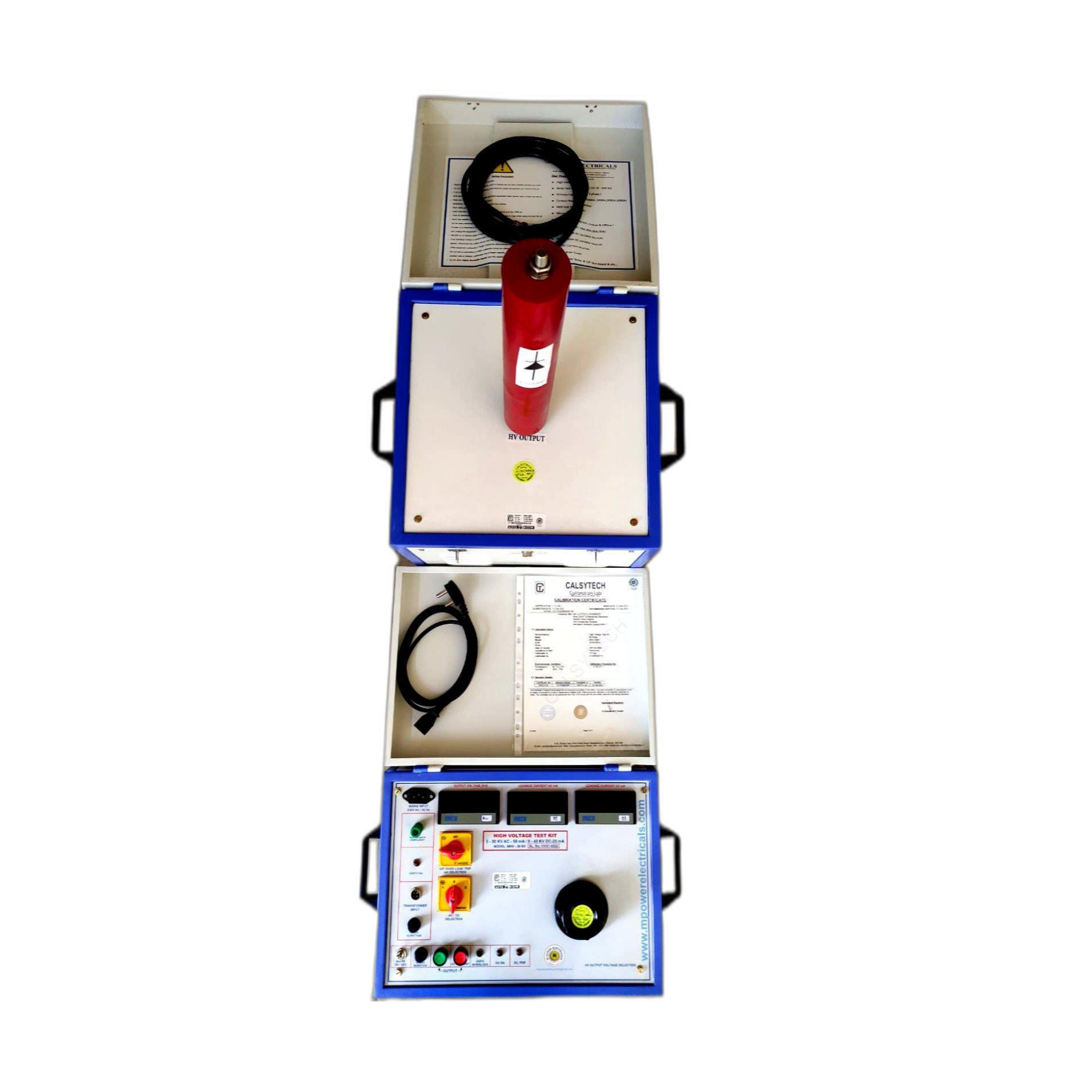

AC/DC Combined High Voltage Test Kit

AC/DC Combined High Voltage Test Kit

AC/DC Combined High Voltage Test Kit

Brief Description:

The AC/DC Combined Hi-Pot Test Kit is a high-voltage insulation testing device designed to assess the dielectric strength and insulation performance of electrical equipment. It provides both AC and DC high-voltage outputs, making it suitable for power equipment testing, cable insulation verification, electrical component evaluation, and quality control in industrial and laboratory environments. The kit is widely used for testing transformers, switchgear, circuit breakers, HV cables, motors, capacitors, and relays, ensuring compliance with safety standards in manufacturing, power generation, and research fields.


Product Detail

Specifications



Specification Details
Power Supply 230V AC, 50Hz ±10%
Rated Output Voltage 30/40kV, 60kV/70kV, 70kV/80kV (Customizable)
Rated Output Current 15/5mA, 25/15mA, 50mA/25mA (Customizable)
Resolution 0.001 to 1 Count
Transformer Accuracy ±1kV (Full Load)
Meter Accuracy 0.5 / 1.0 Class
Environment Temperature -10°C ~ 50°C
Panel Meters kV, mA AC/DC Meter
Housing i) Control Unit - Polypropylene Case / Mild Steel Box ii) Transformer Unit - Mild Steel Box
Weight i) Control Unit - 12kg ii) Transformer Unit 30kV - 20kg iii) Transformer Unit 60kV - 42kg iv) Transformer Unit 70kV - 46kg
Timer (Optional) 0 - 9999 Sec



Standard Accessories

  • Transformer Interconnecting Cables
  • Power Cord
  • Earth Cables

Optional Addons

  • DC Digital Voltmeter:0-100kV AC/DC
  • DC Micro Ammeter
  • Sphere Ball
  • Discharge Rod
  • Resistor
  • HV Capacitor:0-100kV
  • Timer with Buzzer Setup







  The specifications and data provided may undergo modifications due to ongoing research and development.
