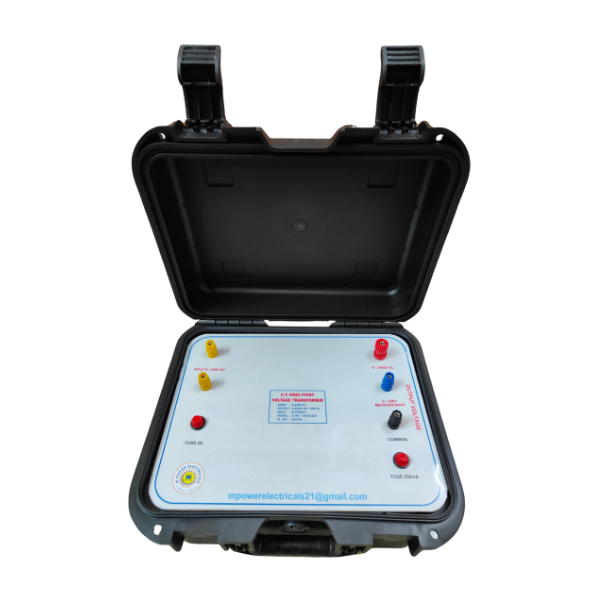

CT Knee Point Tester

CT Knee Point Tester

CT Knee Point Tester

Brief Description:

The CT Knee Point Tester is a simple and reliable instrument designed to test current transformers (CTs). It accurately measures the knee point, ensuring your CTs work properly during fault conditions. This helps prevent issues like CT saturation and ensures accurate protection and metering for your electrical system.


Product Detail

Specifications



Specification Details
Input Voltage 230V AC, 50Hz ±10%
Output Voltage 0-5kV AC (Customizable)
Rated Current 100mA / 250mA / 500mA / 1A (Customizable)
Indication HV ON / Overload Trip
Tapping 10% Output of the Transformer (Measuring Purpose)
Panel Meters kV, mA AC
Accuracy ±100V
Grade Manual Operation
Protection Overload O/P Trip and Short Circuit Fuse
Enclosure Polypropylene Case / Mild Steel Box



Optional Addons

  • HV Connecting Cable
  • Earth Cable
  • Timer and Buzzer Setup















Note:

         The specifications and data provided may undergo modifications due to ongoing research and development.
