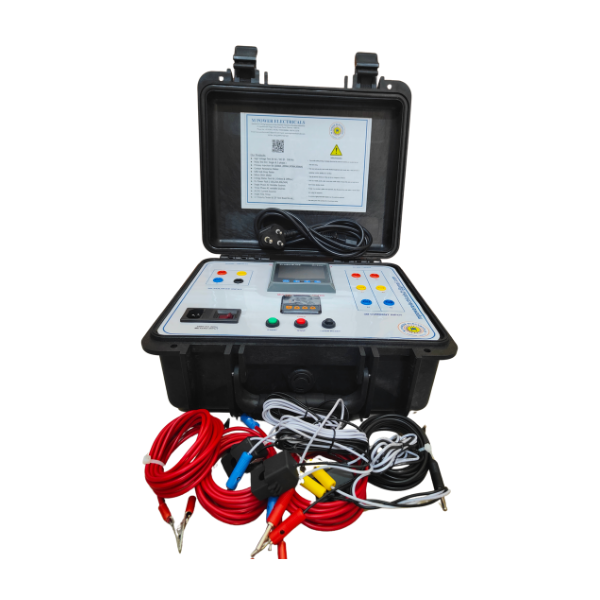

Online Energy Meter Calibrator

Online Energy Meter Calibrator

Online Energy Meter Calibrator

Brief Description:

 An Online Three-Phase Energy Meter Test Kit is designed to calibrate and verify the accuracy of energy meters without interrupting their connection to the power system. This capability is essential for maintaining the reliability and efficiency of electrical distribution networks.


Product Detail

Features

  • Compact and lightweight design, ideal for field and lab applications.
  • Rugged powder-coated mild steel enclosure with a carrying handle for durability.
  • User-friendly operation with a clear display and simplified controls.
  • Customizable options to meet specific testing needs.

Specifications

Parameter Specification
Mains Input 230V AC, 50Hz
Voltage Input i) Phase-Neutral: 230V AC ii) Phase-Phase: 415V AC
Current Input Variable 0–5A per phase using Clamp CT
Output Metering Measures 3-phase Voltage, 3-phase Current, kW, kWh, kVA, Power Factor, Frequency
Meter Accuracy Class 0.2, 0.5, or 1 (Customizable)
Time Interval Meter Three-digit, 7-segment LED display (Range: 0–999 seconds)
Output Control Push Button ON/OFF Control
Protection Fuse protection for Mains Supply
Enclosure Polypropylene Case
Dimensions (L×B×H) 340 × 310 × 180 mm
Weight 2 Kg

Standard Accessories

  • Current & Voltage Connecting Cables
  • Test Certificate
