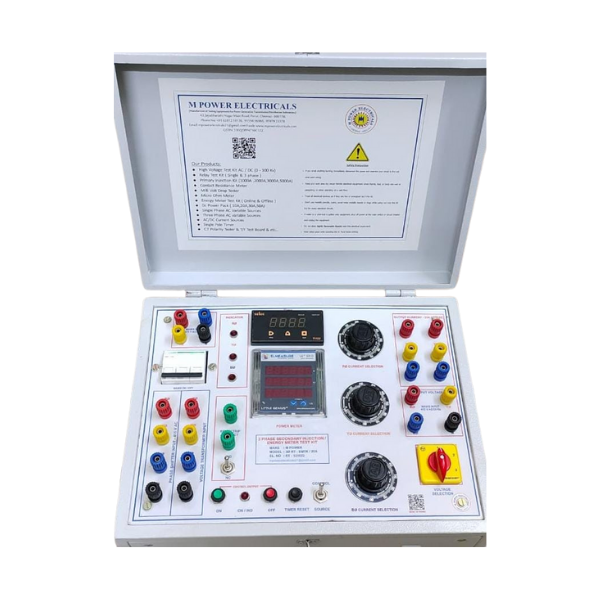

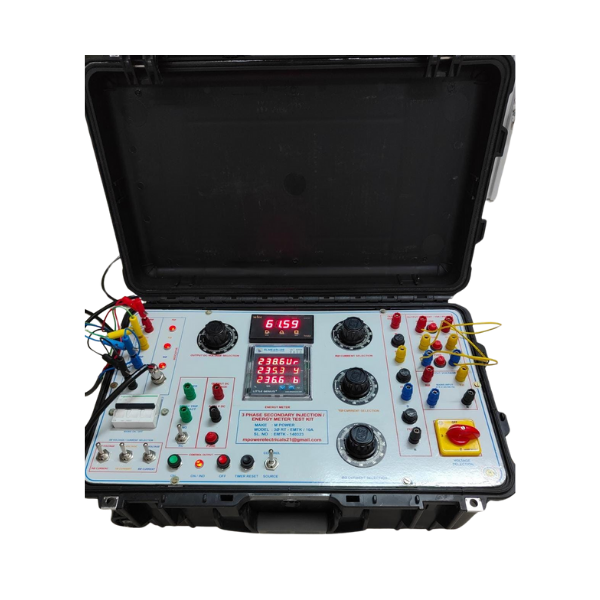

Three Phase Relay Test Kit/Three Phase Secondary Injection Test Kit
Feature
Description
Compact and Lightweight Design
Ideal for field and laboratory applications.
Rugged Build
Powder-coated mild steel enclosure with a carrying handle for durability.
User-Friendly Operation
Clear display and simplified controls for easy operation.
Customizable Options
Configurable to meet specific testing needs.
Specification
Details
Mains Input
415V, 50Hz, AC 3-phase
Voltage Output
i) Phase-Neutral: 63V, 110V, 230V ACii) Phase-Phase: 110V, 220V, 415V AC
Current Output
Variable 0-5A per phase, with optional outputs up to 100A AC
Output Metering
Measures 3-phase voltage, 3-phase current, kW, kWh, kVA, PF, and frequency
Meter Accuracy
Class 0.2, 0.5, or 1 (Customizable)
Time Interval Meter
i) Four-digit, 7-segment LED display with a range of 0.0001-9999 secondsii) Potential-free contact for relay trip testing
Phase Shifter
Optional module for phase angle adjustments during relay testing
Protection
Fuse protection for all output voltage and current channels
Enclosure
Powder-coated mild steel box with carrying handle
Dimensions
436 x 318 x 190 mm (L x B x H)
Weight
21 kg
Note: The specifications and data provided may undergo modifications due to ongoing research and development.
