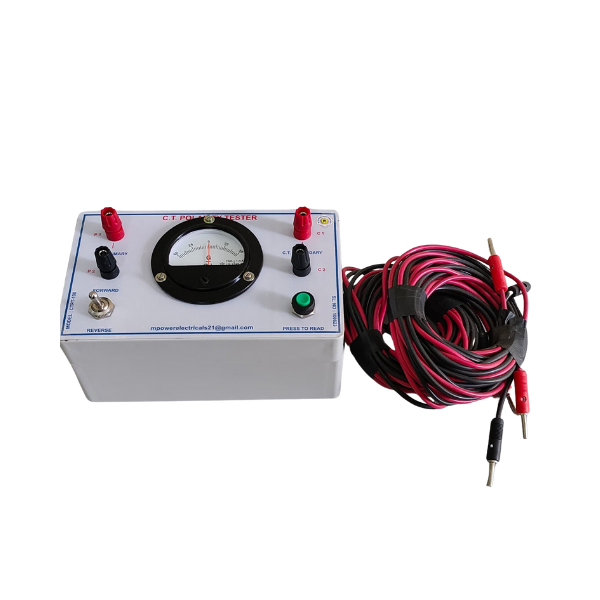

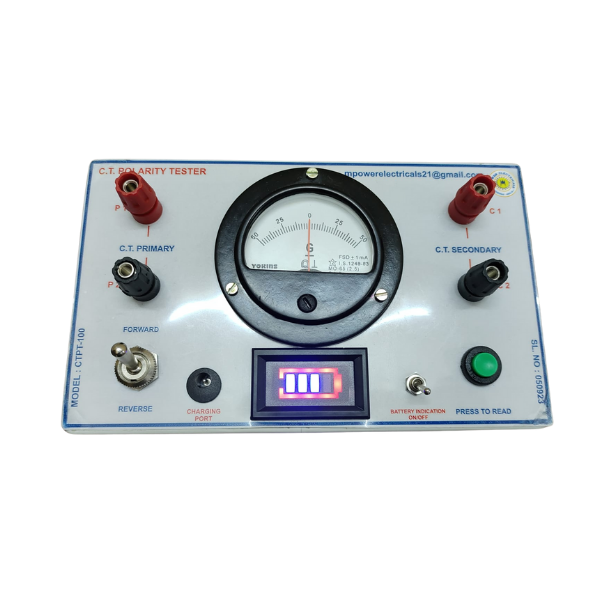

CT Polarity Tester

CT Polarity Tester

CT Polarity Tester

Brief Description:

The CT Polarity Tester (CTPT-100) is a reliable and essential tool for verifying the correct polarity of current transformers (CTs). Ensuring proper CT polarity is crucial for accurate current measurement and the correct operation of protection and metering systems. This easy-to-use device helps prevent connection errors that could otherwise affect system performance.


Product Detail

Specifications



Specification Details
Output Voltage 9V DC
Display Type Analog
Terminals Red & Black Terminals (CT Primary & CT Secondary)
Accuracy ±0.5%
Push Button Press to Read (Forward & Reverse Direction)
Power Source Rechargeable and Non-rechargeable Battery Type
Grade Manual Operation
Weight 1.5kg
Enclosure ABS Box
Dimensions 200 × 120 × 90 mm (L × B × H)



Optional Addons

  • Connecting Cables (Primary & Secondary)
  • Charging Adaptor
  • Battery Indicator







Note:

         The specifications and data provided may undergo modifications due to ongoing research and development.
